Catch basin filter for stormwater – HexGuard

HexGuard is a stormwater catch basin filter designed to capture sediment, debris, hydrocarbons, and other pollutants directly in the catch basin before they are transported through the stormwater system.

When it rains or when snow and ice melt, dirt, sediment, leaves, oil residues, and other pollutants are washed from paved surfaces into storm drains. Without proper treatment, these pollutants can be carried into lakes, rivers, streams, and coastal waters. At the same time, sediment and debris can accumulate in catch basins and stormwater pipes, leading to blockages, reduced drainage capacity, and, in severe cases, flooding.

To capture pollutants at the source, we developed HexGuard, a catch basin filter installed directly inside the storm drain. HexGuard serves as an effective complement to our full-scale water treatment systems, helping reduce the load on stormwater infrastructure and improving overall stormwater management.

Applications for catch basin filters

Our stormwater catch basin filters can be used in most operations where on-site treatment directly within the storm drain is needed. Common applications include:

  • Construction sites
  • Industrial facilities, such as recycling centers, landfills, and energy facilities
  • Parking lots and paved parking areas
  • Ports, harbors, and waterfront areas
  • Firefighting water management, for example following vehicle fires

Dimensions and specifications

The filter is made from geotextile and designed for installation in stormwater catch basins. It takes up minimal space in a service vehicle and is easy to transport and handle.

Dimensions: 120 cm (47.2 in) long, 90 cm (35.4 in) wide, and 45 cm (17.7 in) high.

Easy and quick installation

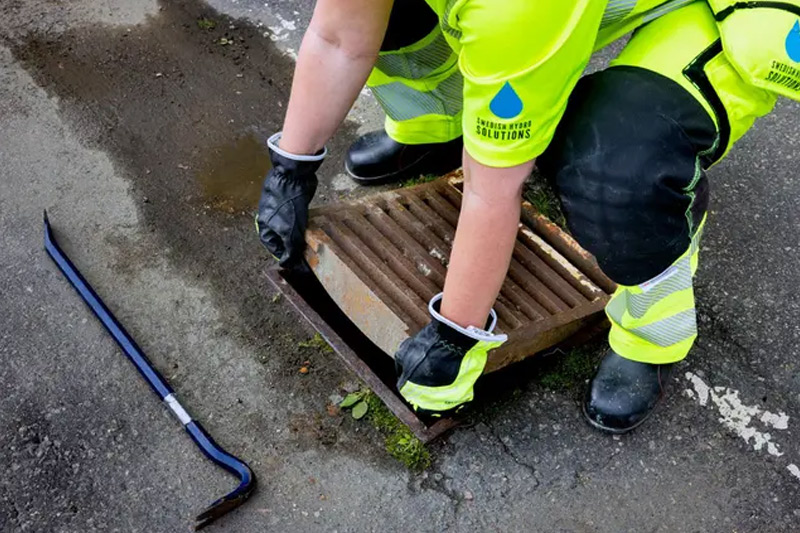

Step 1

Remove catch basin grating and clean dirt and debris from the grating ledge.

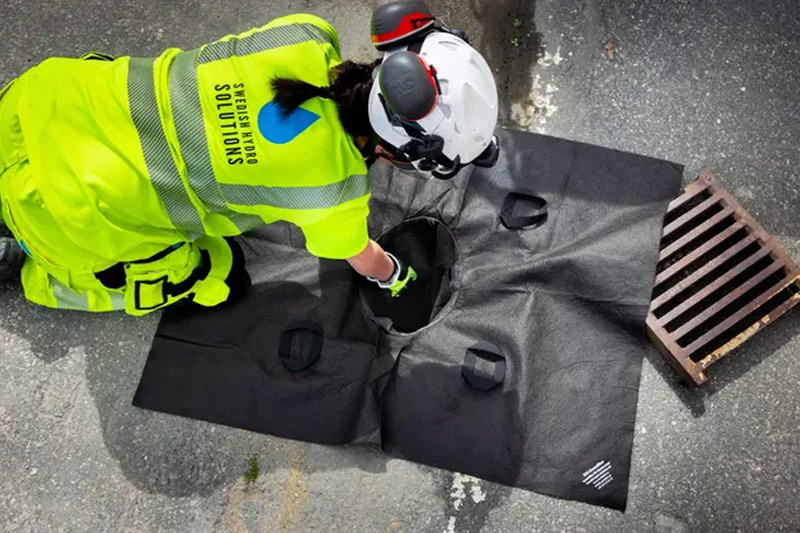

Step 2

Place the filter over the catch basin openings with the bag-side inside the basin.

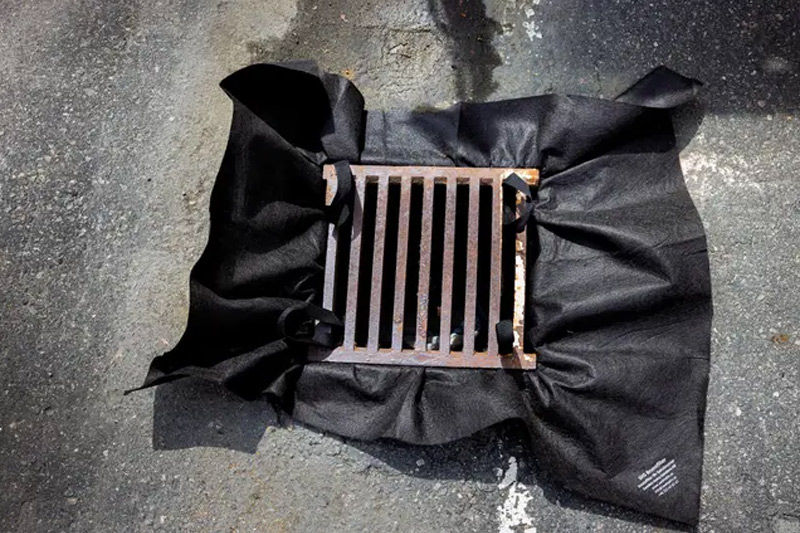

Step 3

Replace the grating, wedging the filter between the grating and the catch basin frame.

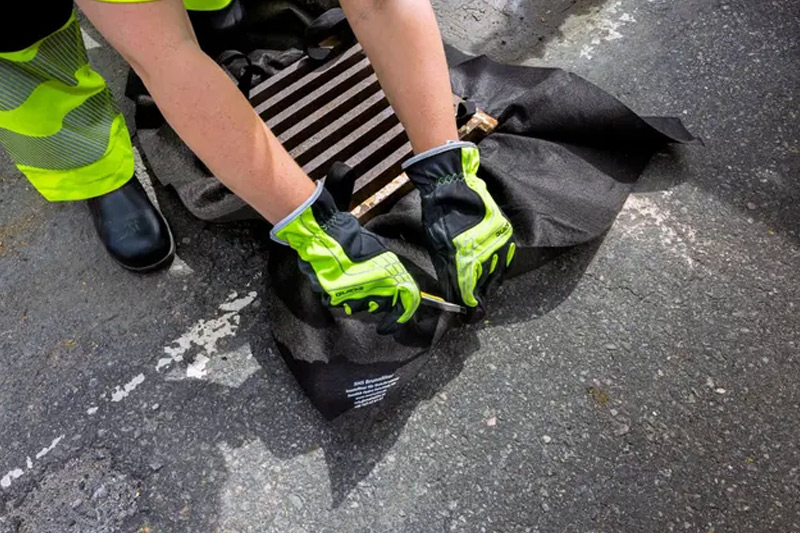

Step 4

Cut the excess fabric off and leave a 3-inch-wide strip of the fabric above the grating.

Do you have questions about HexGuard?

Would you like to learn more about our catch basin filter and how it can be used in your operations? Contact us, and our team will be happy to help you find the right solution.

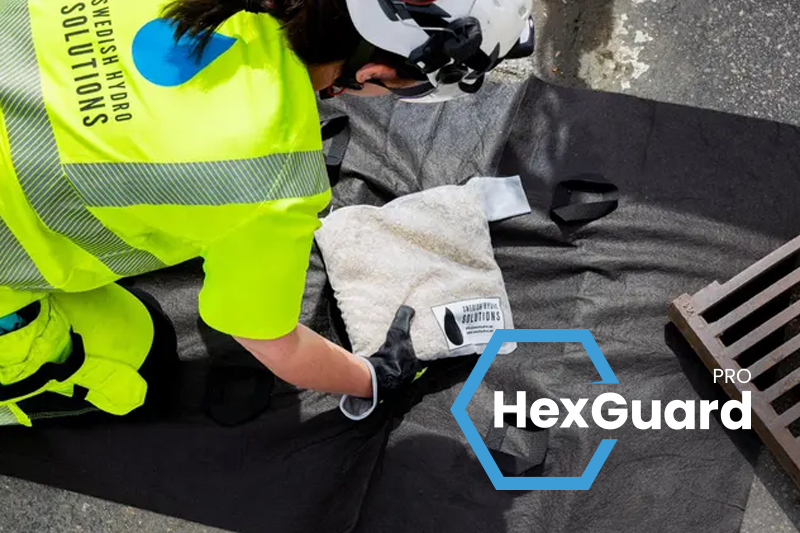

HexGuard PRO – for enhanced treatment

For improved stormwater treatment performance, the catch basin filter can be supplemented with filter bags containing BioMedia® and/or an oil absorbent, depending on the type of contaminants being targeted.

The proprietary filter media in BioMedia® is designed to effectively reduce heavy metals such as copper, lead, and zinc, as well as a wide range of organic compounds, from petroleum-based contaminants to chlorinated pollutants.

The oil absorbent is made from recycled wood fibers and is engineered to selectively absorb oil-based liquids while repelling water, enabling efficient removal of hydrocarbons from stormwater runoff.

Frequently asked questions about catch basin filters (FAQ)

How quickly can you deliver your catch basin filters?

The delivery time for our catch basin filters depends on the order quantity and current inventory levels. Under normal circumstances, delivery is typically within 2–3 business days.

For exact lead times, please contact us at sales@swehydro.com

What do your catch basin filter cost?

The price of a catch basin filter ranges from SEK 970 to SEK 2,790 per unit, depending on the selected options and order quantity. Volume discounts are also available for larger orders.

Please contact our sales team at sales@swehydro.com for a customized quote

How long can your catch basin filters be used?

The service life of a catch basin filter depends on the load it is exposed to, such as the amount of sediment, leaves, gravel, and other debris collected in the filter.

Under normal conditions, our catch basin filters are typically replaced after 3–6 months. However, both shorter and longer replacement intervals may be appropriate depending on site-specific conditions.

What should we do with the catch basin filter after use?

After use, the catch basin filter should be handled and classified in accordance with applicable waste regulations. Disposal requirements may vary depending on local legislation and the contaminants captured by the filter.

If you have used one of our catch basin filters and have questions regarding handling or disposal after use, please contact us at info@swehydro.com

What is the difference between HexGuard and HexGuard PRO?

HexGuard is the catch basin filter itself and is used to capture sediment, debris, gravel, leaves, and other particles that would otherwise enter the stormwater system.

HexGuard PRO consists of the catch basin filter combined with filter bags containing BioMedia® and/or oil absorbents to further reduce oil, metals, and organic contaminants in stormwater.

Example of a catch basin filter application

A utility company in western Sweden evaluated our catch basin filters equipped with an oil absorbent to reduce oil contamination in stormwater runoff from parking areas and traffic surfaces. The project included both field evaluations and laboratory analyses to assess the filters’ treatment performance.

The results showed an oil reduction of 85–90%, demonstrating the filter’s ability to capture hydrocarbons before they enter the stormwater system.

Catch basin filter

Would you like to order HexGuard?

Contact our sales team to order HexGuard or to get assistance with any questions about the product. We’ll help you find the right solution for your specific needs.
